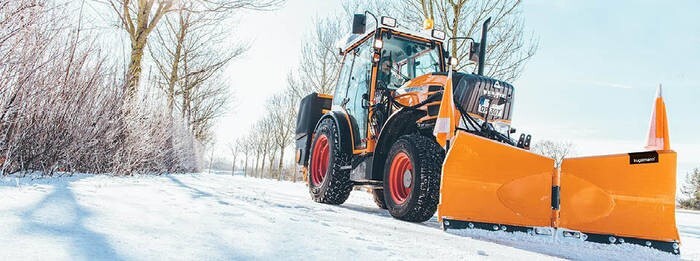

SMOOTH SNOW CLEARING
kugelmann snow ploughs stand for clean snow removal without damaging roads and tracks
CLOSED SNOW CLEARING EDGE
Even with a V-shaped blade, no snow is left in the center
INDIVIDUALLY ADJUSTABLE BLADES
The adjustment range of the blades is up to 30° forward and up to 30° backward
THE RIGHT SNOW PLOUGH FOR EVERY TRACTOR
kugelmann snow ploughs can be configured in finely tuned widths and heights.
Choose the ideal clearing width for the respective tractor power.
SPRING-LOADED SNOW PLOUGHS
In addition to the VARIO blades, we offer also spring loaded ploughs.
Convenient hydraulic control of all settings from the tractor
kugelmann snow ploughs stand for clean snow removal without damaging roads and sidewalks. The scraper blades made of Vulkollan or steel are subject to low wear and tear. The unique solution of an absolutely closed snow clearing edge means that no snow is left in the center even with a V-shaped blade.
Convenient hydraulic control of all settings from the tractor. The adjustment range of the blades is up to 30° forward and up to 30° backward.
The mounting frame is equipped with all bores for mounting plates, Weiste triangle or for three-point attachment. Also the pivot for the hydraulic lateral adjustment is positioned here.
A unique feature is the precise guiding by means of the slide pad placed close to the scraper blade. The slide pad supports gentle snow clearing and prevents the blade from bouncing on uneven surfaces. If the scraper blade folds backward due to any obstacles, also the slide pad draws back to prevent possible damage. A spindle ensures precise height adjustment. The silicone shock absorber protects the entire frame and the hydraulic system of the tractor. At the same time, it offers the optimum pressure during snow clearing and brings the scraper blade back to its working position immediately after it folded back.
